Industrial Weighbridge Manufacturer & Dharamkanta Systems

Engineering Heritage & Rigor

Over a Century of Uncompromising Accuracy

Industrial operations cannot afford scale downtime or weighing inaccuracies. Dynamic Works weighbridges deliver certified precision across continuous, high-volume cycles.

Whether monitoring heavy freight in power plants, tracking aggregate in construction quarries, or processing bulk scrap loads in steel mills, our measurement systems ensure metrological compliance, operating efficiency, and zero bottlenecks.

Marketed under our premier “EXELON” brand, our weighbridges are backed by our ISO 9001 certified manufacturing plant in Patna (Naubatpur) and Gujarat. We combine time-honored mechanical metrology with modern digital telemetry, smart RFID boom barriers, and seamless ERP integration (SAP & Oracle).

Zero Calibration Drift

Thermally compensated load-cells rated from -35°C to +65°C.

Factory-Direct Value

Direct manufacturing supply eliminating middleman markups.

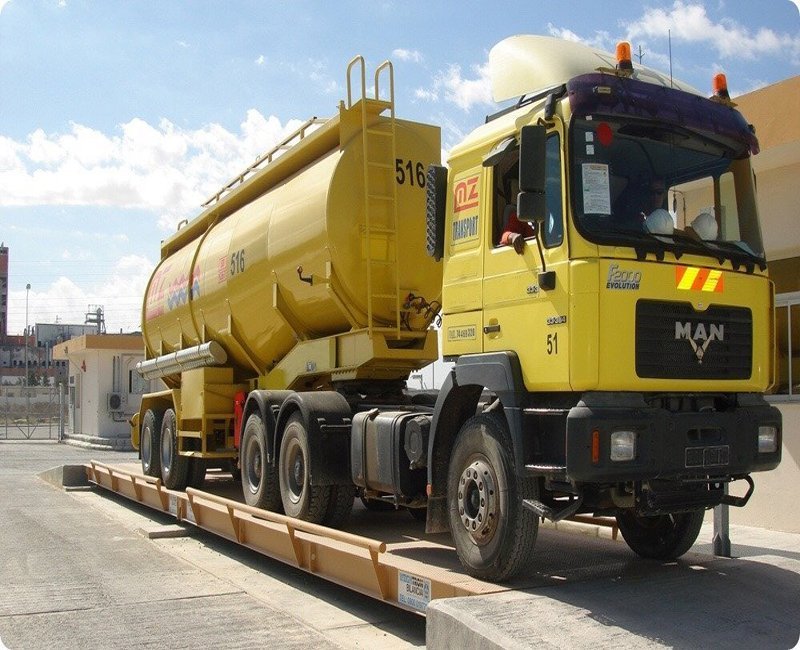

Dynamic Works Industrial Weighbridge Installation

PATNA HEADQUARTERS

Regional Sales & 24x7 Spares Depot

Structural Supremacy

Engineered for Strength: The Sandwich Deck Advantage

The backbone of every Dynamic Works weighbridge is our proprietary fully welded, modular sandwich-style deck. Engineered with heavy-duty structural H-beams, high-strength patterned chequered plates, and reinforced bottom cowl plates, the platform minimizes beam deflection even under maximum gross vehicle weight.

Deck Architecture Breakdown

Unlike conventional single-flange channels that warp under repeated heavy braking, our sandwich structure distributes dynamic vehicle shock loads across an interconnected grid.

Top Surface

Anti-Skid Chequered Plate (10mm to 14mm)

High-traction prime mild steel prevents wheel spin during monsoons.

Internal Core

Heavy-Duty Longitudinal Structural H-Beams

Submerged-arc continuous welding eliminates weld fatigue across decades.

Base Support

Reinforced Bottom Cowl Plates

Forms an ultra-rigid torsion box resisting torsional twist and deflection.

Feature	Engineering Specification	Operational Advantage
Deck Architecture	Fully welded, modular sandwich construction	Resists deck deformation and distributes dynamic axle loads evenly
Core Material	Certified steel sourced from India’s top mills (SAIL/TATA/Jindal)	Delivers maximum tensile strength and impact resistance
Surface Finishing	Shot-blast cleaned with industrial epoxy primer & PU topcoat	Provides lasting protection against chemical corrosion, moisture, and rust
Metrology Standards	Built to national & international metrology standards (OIML/IS)	Guarantees hassle-free certification and verifiable weight records

Complete Product Portfolio

EXELON Heavy-Duty Weighing Solutions

Every installation is engineered to your specific site dimensions, turning radius, ground conditions, and axle capacities—delivering uncompromised accuracy across millions of crossings.

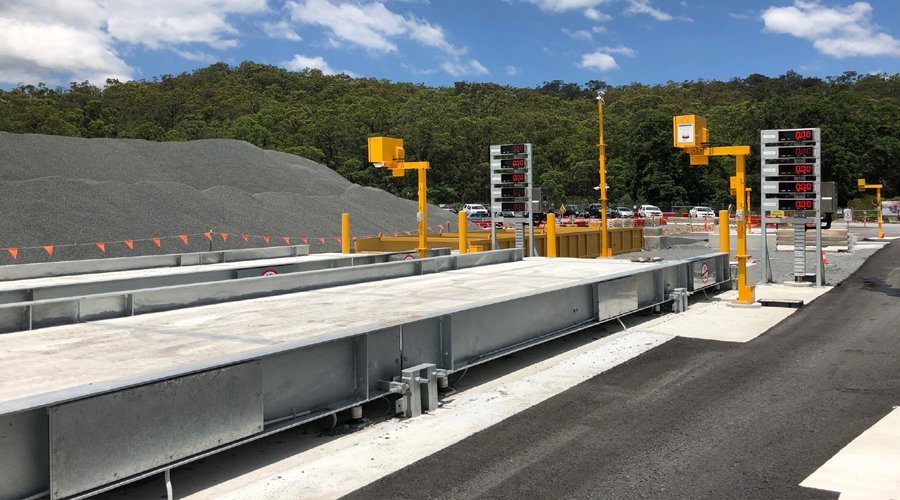

Pitless Weighbridge

Surface-mounted truck scale elevated above grade. Eliminates pit excavation, avoids seasonal waterlogging, and allows effortless 360° maintenance.

Capacities: 20T to 150+ Tonnes
Civil Prep: Economical flat raft slab
Drainage: Zero risk, natural runoff

Explore Specifications

Space Saving

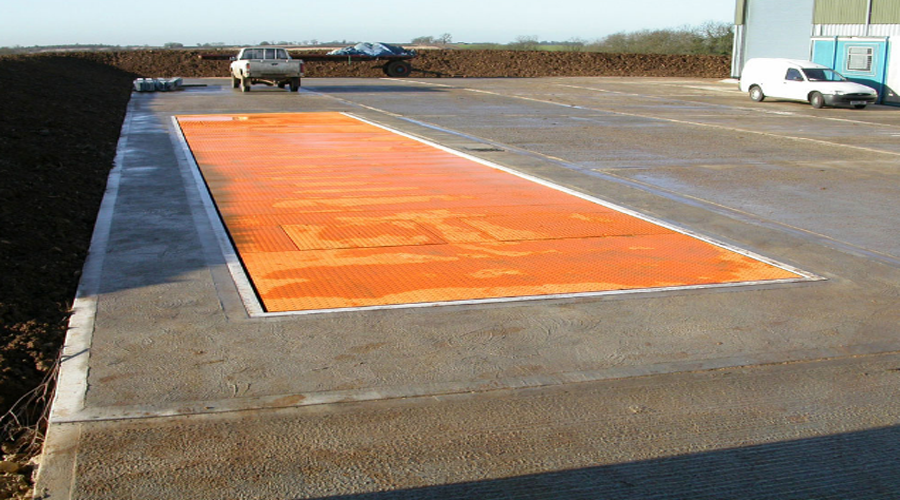

Pit-Type Weighbridge

Installed flush with road grade. Zero ramp length needed—ideal for constrained industrial yards, narrow gates, and simultaneous filling under silos.

Footprint: Occupies only deck area
Traffic Flow: Unrestricted multi-directional
Foundation: Reinforced pit with manholes

Explore Specifications

Relocatable

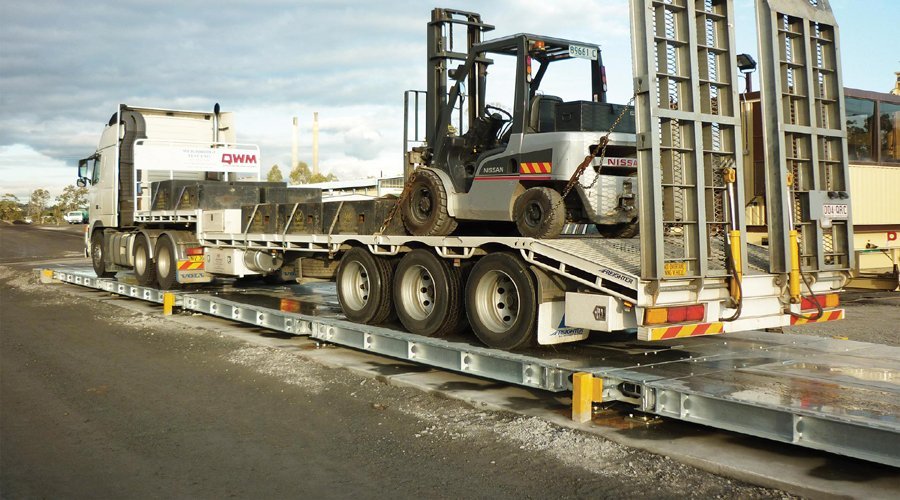

Modular Weighbridge

Transportable modular steel-deck sections engineered for rapid bolting. Ideal for short-to-medium term infrastructure contracts (3–7 years).

Relocation: 100% reusable across sites
Installation: Commissioned in 1–2 days
Supply: Factory-assembled or Kit Form

Explore Specifications

Forklift Movable

Mobile LPAX Axle Weigher

30-Tonne capacity Low Profile Axle Weigher standing just 65mm high. Foundationless setup deployed directly on flat hardstands in 2 to 4 hours.

Tracks: Dual 3.6m long weighing tracks
Weight: ~1.25 Tonnes per track section
Function: Totalizes axle groups dynamically

Explore Specifications

Overload Protection

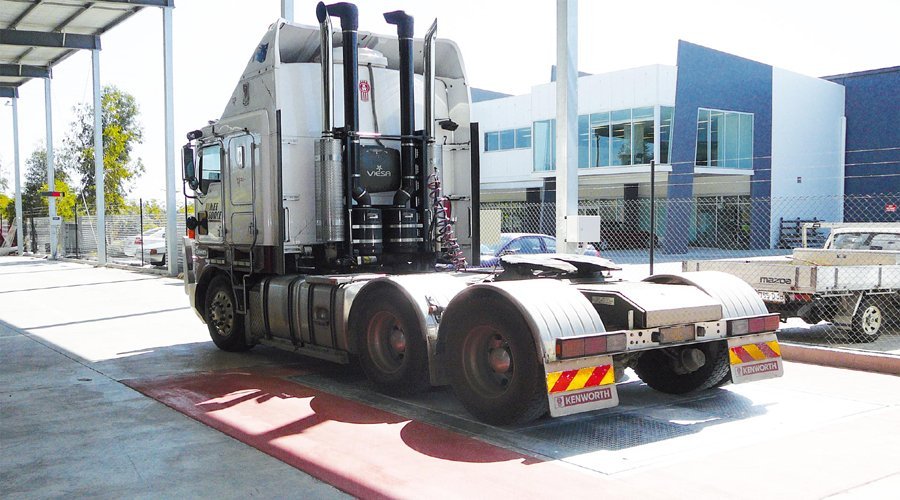

Static Axle Weigher

Flush 4m x 3m in-ground platform capturing axle-by-axle weights to eliminate highway overload fines and ensure balanced freight distribution.

Deck Dimensions: Compact 4.0m x 3.0m
Axle Rating: 30T to 50T per axle group
Civil Cost: Fraction of full 18m pits

Explore Specifications

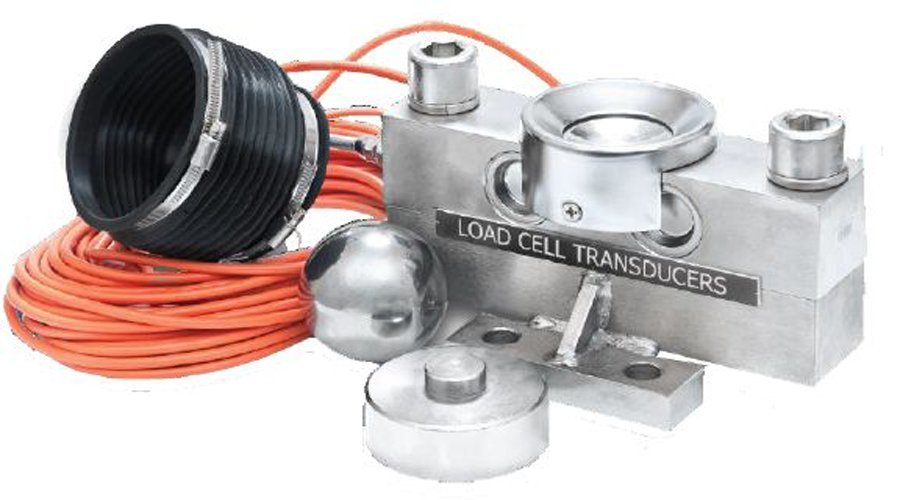

Appalto Digital Load Cells and Electronics

IP68 / IP69K

Weighbridge Electronics & Spares

Appalto series digital load cells, intelligent micro-controller indicators, ERD jumbo outdoor LED displays, and heavy-duty lightning protection barriers.

Sensors: Hermetically laser-welded IP68
Displays: Daylight-readable up to 100m
Surge Guard: Clamps voltage below 100V

Explore Specifications

The EXELON Advantage

16 Reasons Industry Leaders Prefer “EXELON”

From proprietary cup-and-ball load cell mechanics to round-the-clock technician response, discover why top mining, cement, and logistics companies standardize on Dynamic Works.

1

1-Year Unconditional Replacement

Advantage: Piece-to-piece component replacement guarantee covering load cells and indicator electronics.

Benefit: Eliminates downtime risks during early production cycles.

2

11+ Years of Manufacturing Heritage

Advantage: Continuous engineering evolution since 2014 under the EXELON banner with 1,000+ client installations.

Benefit: Proven platform reliability in severe operating conditions.

3

Password-Protected Auto Calibration

Advantage: Built-in smart digital terminal calibration with tamper-proof security safeguards.

Benefit: Allows swift in-house recalibration without third-party delay.

4

High-Luminance Dual LED Display

Advantage: High-contrast digits visible in broad daylight, driving rain, and thick winter fog.

Benefit: Prevents operator misreading and speeds up vehicle clearance.

5

Surge & Voltage Fluctuation Guard

Advantage: Integrated surge suppressor and voltage stabilization built for erratic industrial power grids.

Benefit: Protects delicate circuitry from voltage spikes and lightning.

6

SS Junction Box with Corner Trimming

Advantage: Heavy-gauge stainless steel enclosure with multi-turn tuning card.

Benefit: Prevents moisture ingress and allows balanced corner loading.

7

Industrial Grade Mild Steel Structure

Advantage: Fabricated exclusively from prime steel plate produced by top Indian mills (SAIL/TATA).

Benefit: Maximum torsional rigidity and minimum deflection over decades.

8

Cup & Ball Double-Ended Shear Beam

Advantage: Self-aligning rocker design with full omnidirectional shock absorption.

Benefit: Zero cell rotation wear; virtually eliminates load-cell fatigue.

9

Hermetically Sealed IP68 Load Cells

Advantage: 100% waterproof assemblies submersible up to 1 meter underwater.

Benefit: Uninterrupted precision during torrential monsoon seasons & flooding.

10

Extreme Thermal Tolerance

Advantage: Certified operational range from -35°C to +65°C with internal thermal compensation.

Benefit: Built for freezing cold storage and blazing hot industrial yards.

11

Global Metrology Approvals

Advantage: Approved and tested to OIML, NTEP, CE, and RoHS international guidelines.

Benefit: Full legal compliance for commercial custody transfer & stamping.

12

Complimentary Corporate UPS System

Advantage: High-voltage protected battery backup included free for corporate installations.

Benefit: Ensures continuous weighing during grid power blackouts.

13

Economical Total Cost of Ownership

Advantage: Factory-direct supply without intermediary dealer markups.

Benefit: Best price-to-performance ratio across all tonnage segments.

14

End-to-End Application Engineering

Advantage: Custom civil foundation layout design, soil testing advice, and process integration.

Benefit: Custom-designed to solve complex bulk materials challenges.

15

Rapid Support & On-Site Service

Advantage: Dedicated mobile service units deployed strategically across Bihar, Jharkhand & Gujarat.

Benefit: Prompt dispatch of spares, recalibration, and preventive checks.

16

Proven Track Record (1,000+ Units)

Advantage: Peer-tested performance across heavy PSU, government, and private corporate sites.

Benefit: Verified reliability across hundreds of continuous heavy industries.

Target Applications

Industries Relying on Dynamic Works

Our scales operate in some of India’s most unforgiving production environments, logging hundreds of heavy-tonnage vehicle passes around the clock.

Mining & Aggregates

High-capacity scales up to 150T built for off-road haul trucks, dumpers, coal mines in Dhanbad, and stone crushers in Gaya.

Metals & Foundries

High-impact, thermal-resistant platforms designed for continuous scrap metal intake, sponge iron transit, and steel dispatch in Bokaro and Jamshedpur.

Cement & Construction

Dust-proof IP68 load-cell assemblies designed for harsh cement dust, batching plants, and highway infrastructure corridors.

Sugar & Agro-Logistics

Rapid gross/tare vehicle weighing with high-speed automated ticketing for rice mills, grain silos, and sugar mills in Champaran and Rohtas.

View All Industrial Applications

Regional Service Leadership

Bihar & Jharkhand Dharamkanta Network

With headquarters and regional technical dispatch in Patna, Bihar, and specialized field teams across Jharkhand’s mining corridor, we deliver rapid on-site service within 24 hours.

Bihar Hub (All 38 Districts)

Extensive coverage across Patna, Gaya, Muzaffarpur, Bhagalpur, Rohtas, Purnea, Bhojpur, Champaran, and every district with certified Legal Metrology stamping support.

Explore Bihar Services

Jharkhand Mining Belt (All 24 Districts)

Engineered for heavy coal in Dhanbad, steel hubs in Bokaro and Jamshedpur, iron ore in West Singhbhum, and stone quarries in Sahebganj and Pakur.

Explore Jharkhand Services

24x7 Emergency Breakdown Hotline

A scale breakdown halts dispatches and revenue. Dynamic Works maintains dedicated emergency spare parts inventory in Patna for immediate same-day dispatch.

Toll-Free / Primary Technical Support:

+91-8210165237

WhatsApp Instant Video Support:

+91-8210165237
